AMF601 : Electromagnetic Flowmeter
เนื้อหา

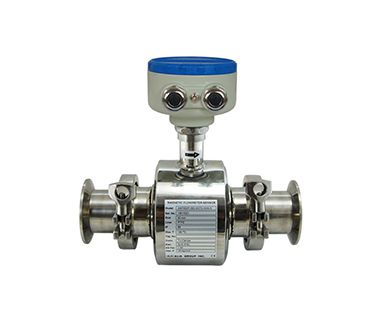

AMF601 Series

AMF601 Series is a sanitary type electromagnetic flowmeter ideal for conductive
liquids. It comes in sizes from 25mm to 100 mm. The AMF601 is widely used for
drink water, milk, food & beverage juice and many other industrial fluid.
AMF601 Series electromagnetic flowmeter could be used in compact or separate model
with AMC Series converter of electromagnetic flowmeter.


FEATURES
• Light and compact version
• Flow Velocity range: 0-12 m/s, precise in low flow applications
• IDF Tri-Clamp or Union screw Connection
• Excellent for high pressure application
• Protection class: IP68 available; sensor submersible
• PTFE Liner is suitable for vacuum tube
• High accuracy of +/-0.4% value of reading (or+/-0.2% value of reading)
• With Forward / Reverse flowrate measurement function


SPECIFICATION

Size:

Cable Entry:

25, 32, 40, 50, 65, 80, 100 mm

Standard :PG11  Option:1/2"NPTF

1", 1-1/4", 1-1/2", 2", 2-1/2", 3" , 4"

Ambient Temperature:

Measuring Range:

-25 to +60 oC

Velocity   0-0.25 m/s min.

Process Connection:

                0-12 m/s max.

IDF Tri-Clamp

Material:

Union Screw

Tube & Connection

Grounding Resistance:

Stainless Steel 304 or 316

Must be  less than 10  Ω

Coil Housing

Accuracy:

Stainless Steel 304 (Standard)

+/-0.5% reading (Velocity >=0.5m/s)

Stainless Steel 316 (Option)

+/-0.2% reading

Liner

(Suitable for AMC3100 converter only)

PTFE

+/-0.0025 m/s (Velocity < 0.5 m/s)

Electrode

Temperature:

Stainless Steel 316L

-40 to +150 oC

Hastelloy B

Max. Pressure:

Hastelloy C

10 Kg/cm2 (Standard)

Titanium

40 Kg/cm2 (Option)

Tantalum

Explosion Proof:

Tungsten Carbide

Exd(ib)ibqIIBT5

Platinum

(with AMC3100/AMC4000 only)

Protection Class:

Junction box IP67, Body IP68

IP68 (Submersible)

Conductivity:

More than 5 uS/cm
