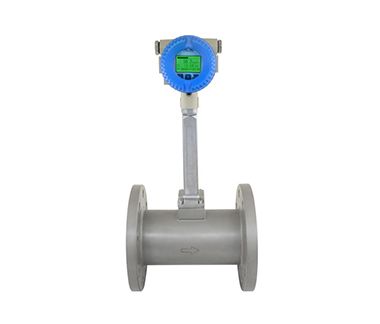

AVF7000 : Vortex Flowmeter
AVF7000 Series
AVF7000 is a Vortex Flowmeter based on Von Karman theory of vortices generated by
a bluff body in the pipe. The number of vortices are linearly proportional to the volumetric flow in the pipe.
The AVF7000 is versatile flowmeter widely used for Gases, Steam & Liquid applications.
There are no moving parts and comes with either flange or wafer connection. Standard configuration
has local indication for flowrate and total flow as well as 4-20mA with HART signal and pulse output
functions. The microprocessor design can filter out erroneous signals as well as interfence caused by pipe vibration.
FEATURES
- Simplified setup and self-diagnostic functions
- Auto. Temperature & Pressure compensation
- 4-20mA with HART signal and pulse outputs, user selectable
- A very wide selection of sizes
- Wide temperature range up to 420 oC
- Non-volatile memory for setup and calibration
SPECIFICATION
Size: | Local Display: |
15,20,25,32,40,50,65,80,100,125,150 | 2 lines LCD |
200,250,300,350,400,450,500mm | 6 digit flowrate |
Measuring Range: | 8 digit Totalizer |
Steam – 1.6 to 540,000 Kg/Hr | Current Output: |
Gas – 3 to 46,000 M3/Hr | 4-20 mA (2 wire) with HART signal |
Liquid – 0.3 to 4950 M3/Hr | Load |
Material: | Max. 1000 Ω |
Stainless Steel 301 / 304 / 316 | Pulse Output: |
Accuracy Liquid: | Scale Pulse |
+/-0.7% value of reading | Load |
Gas & Steam | 1000 Ω – 5000 Ω |
+/-1.0% value of reading | Communication: |
Unit: | HART(Compatible) or RS485 (MODBUS Protocol) |
Nm3/h, Nm3/m, Nm3/s, m3/d, m3/h, m3/m | Data Storage: |
m3/s, l/h, l/m, l/s, t/d, t/h, t/m, kg/d, kg/h | Operation parameter and totalizer |
kg/m, kg/s, g/h, g/m, g/s | figures are stored by EEPROM for more |
Repeatability: | than 10 years |
+/-0.2% value of reading | Housing Material: |
Process Connection: | Aluminum Alloy |
Flange / Wafer | Cable Entry: |
Flange type | Standard :M20 Option:1/2″NPTF |
JIS 10K / JIS 20K / JIS 40K | Power supply: |
ANSI 150# / ANSI 300# / ANSI 600# | 12-32 VDC |
DIN PN 10 / PN 16 / PN25 / PN 40 | Ni-MH Battery (3 years working Hours) |
Wafer type | KeyPad: |
DN40~DN250 without Temp. / Pressure Sensor | 3 internal keys for programming |
Temperature: | and display control |
-40 ~ +280 oC (Standard) | Option: |
-40 ~ +420 oC (Optional) | Pressure Sensor |
Ambient Temperature: | Pressure compensation |
-20 ~ +60 oC | Signal output |
Pressure: | 0-30 mV DC (20 uA Power supply) |
78 Kg/cm2 (Max.) | Temperature Sensor |
Protection Class: | Temperature compensation |
IP 65 | Signal Output |
Explosion Proof, Exd IIC T6 | PT1000 (2 wires) |
Intrinsically Safe, Eex ia IIC T4 |
